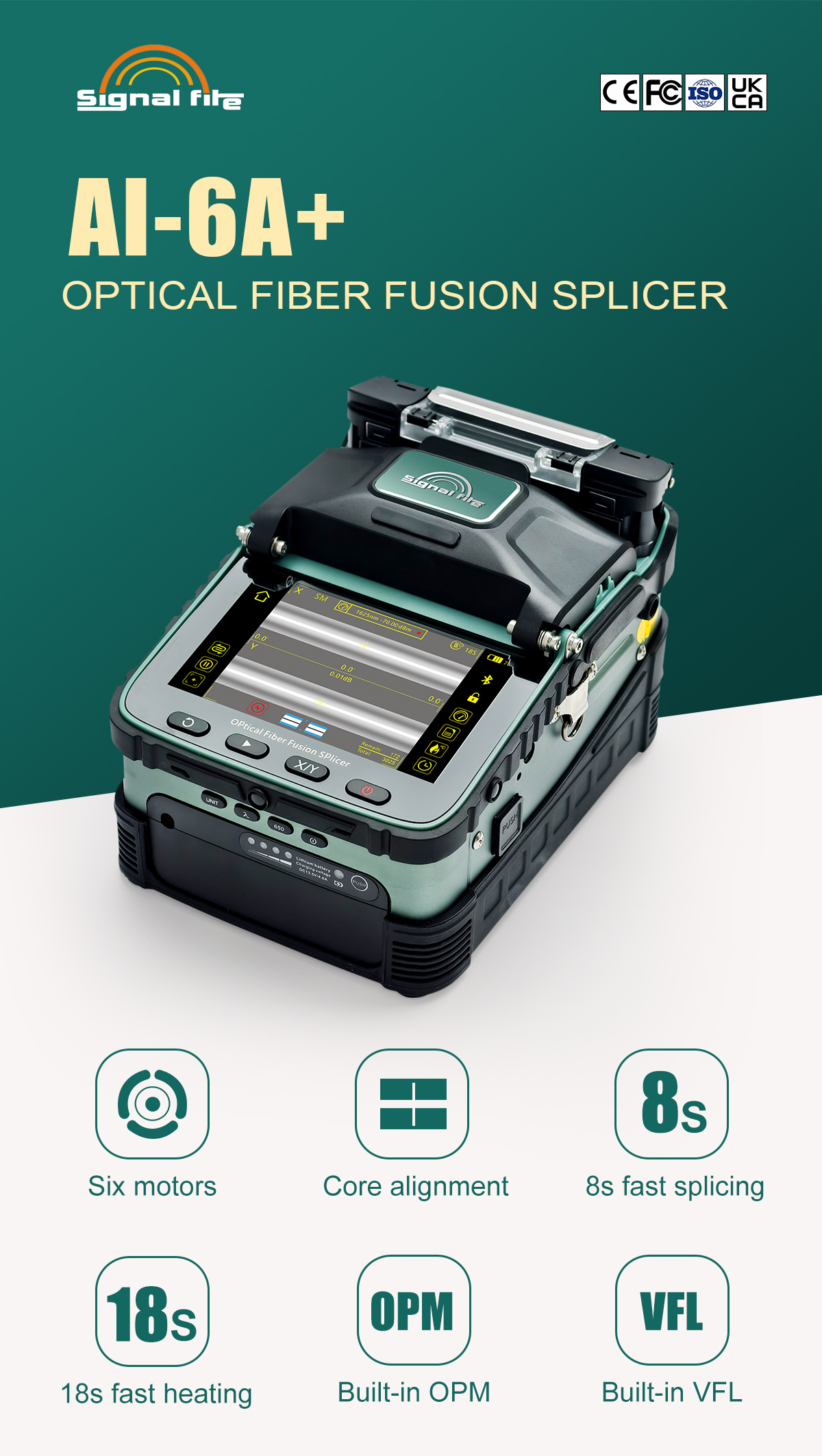

Signal Fire AI-6A+ Fiber Fusion Splicer Machine

Original price was: KSh 65,000.00.Current price is: KSh 60,000.00.

6-motor core alignment fusion splicer
Fast and accurate fiber splicing
HD touchscreen display
Suitable for FTTH & ISP deployments
Long battery backup
Compact and portable design

Purchase & earn 600 points!

Add to wishlist

Categories: Fiber Optics Solutions, Splicing Machine

Tags: Core Alignment Splicer, Fiber Optic Equipment, Fiber Splicing Machine, FTTH Tools, Fusion Splicer, ISP fiber tools, Optical Fiber Splicer, Signal Fire AI-6A+ Brand: Signalfire

Description

The Signal Fire AI-6A+ Fiber Fusion Splicer is a professional-grade fiber optic splicing machine designed for FTTH, ISP, and telecom installations. Featuring advanced 6-motor core alignment technology, the AI-6A+ delivers fast, accurate, and low-loss fiber splicing performance for both single-mode and multimode fibers. [3]

Equipped with a high-definition touchscreen display and intelligent calibration system, the splicer ensures easy operation and stable performance even in demanding field environments. Its compact and portable design makes it ideal for technicians working on FTTH deployments, backbone fiber networks, and maintenance projects. [1]

The AI-6A+ supports rapid heating and splicing, reducing installation time while improving productivity. It also includes long battery life, USB support, automatic fiber identification, and durable construction for outdoor use.

Basic Parameter of Signal Fire AI-6A+

Fiber alignment	Core/cladding
Motor number	6 motors
Splicing time	8s
Heating mode	18s， can be customized according to the external environment
Fiber type	Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber (DSF/G.653), G.654 fiber, non-zero dispersion-shifted fiber (NZ-DSF/G.655), and bend-insensitive fiber (BIF/G.657); suitable for splicing bare fiber, pigtail, drop fiber, patch cord, and invisible fiber.
The cladding diameter	80-150μm
Splicing loss	0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）
Splicing mode	Automatic focusing core alignment, conventional/high precision welding
Splicing way	Automatic, semi-automatic
Fiber holder	Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable
Battery capacity	5200mAh large capacity lithium battery charging time ≤3.0; It can continuously weld and heat about 160 cores
Magnification	300x (X or Y axis single display) 150x (x and Y axis dual display)
Fiber diameter	Coating diameter: 80-150μm/Coating diameter: 100-1000μm
Cutting length	Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm
Heat shrink tube	60mm、50mm、40mm、25mm
Tensile testing	standard 2N
Display	5-inch color touchscreen
Boot time	1s, boot can enter the working mode Signal Fire AI-6A+
Data is stored	Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data.
Wireless communication	Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m
Software upgrade	Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software
Management function	The equipment owner can be bound as the highest authority, and can remotely view the welding records,welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment.
Return loss	Better than 60 db
Product protection	Waterproof, dustproof and fall proof
Power supply	Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level
The work environment	Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s

Size and wight of Signal Fire AI-6A+

Machine weight：1.99kg（including batteries） 1.63kg（excluding batteries）

Tool box weight：4.70kg(including machine and accessories)

Carton weight：5.9kg

Three years warranty, but these circumstances are not within the scope of this provision.

01.Except for the cleaver, miller clamp, stripping pliers, fiber holders and other tools whose life depends on the frequency
of use and the use of the environment. Also electrodes are consumption material which are not in the warranty.
02.Battery and power adapter are warranty for one year, it is in free warranty where it is damaged or can not be charged in one year.
