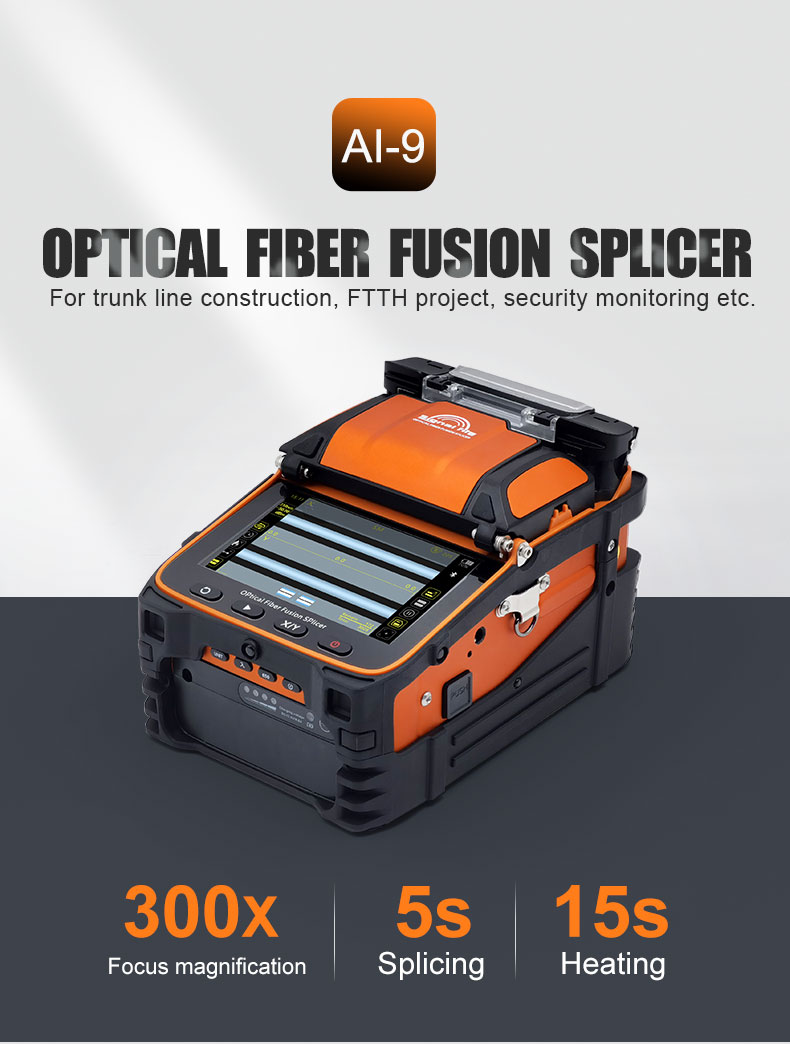

Signal Fire AI-9 Fiber Fusion Splicing Machine | 6-Motor Core Alignment Splicer
Original price was: KSh 85,000.00.KSh 80,000.00Current price is: KSh 80,000.00.
The Signal Fire AI-9 is a high-precision, 6-motor core-alignment fiber fusion splicer designed for FTTH, LAN, and telecom fiber installation projects. It delivers ultra-fast 5-second splicing, 15-second heating, and features built-in Visual Fault Locator (VFL) and Optical Power Meter (OPM). Its long-lasting 7800 mAh battery supports up to 260 splice + heat cycles, making it perfect for field engineers and fiber technicians.
The Signal Fire AI-9 Fiber Fusion Splicing Machine represents a new generation of smart optical fiber splicers designed for FTTH, backbone, and enterprise network installations. With its 6-motor core alignment system, the AI-9 ensures ultra-accurate fiber positioning and minimal splice loss across all major fiber types including single-mode (SM), multi-mode (MM), dispersion-shifted (DS), and bend-insensitive (BIF) fibers.
Built for speed and precision, the AI-9 completes a typical splice in just 5 seconds and a heat shrink in 15 seconds. The 5-inch HD LCD display provides a crystal-clear image for monitoring splicing results in real-time, while the 300× magnification allows for detailed inspection of fiber cores.
The built-in Visual Fault Locator (VFL) and Optical Power Meter (OPM) allow technicians to test connections directly from the splicer — eliminating the need for external tools. Its 7800 mAh battery delivers up to 260 splice/heat cycles on a single charge, ensuring full-day performance in the field.
Housed in a rugged, weather-resistant chassis, the AI-9 is engineered to withstand harsh field environments — whether it’s high altitude, extreme cold, or dusty outdoor sites. Combined with automatic environmental calibration and USB connectivity for firmware upgrades, this machine ensures long-term reliability and user convenience.
Perfect for telecom engineers, fiber installers, ISPs, and network contractors, the Signal Fire AI-9 offers a professional, cost-effective solution for all your splicing needs.
Package Contents
- Signal Fire AI-9 Fusion Splicer
- Fiber Cleaver
- Fiber Stripper
- Spare Electrodes
- Cooling Tray
- Power Adapter & Charging Cable

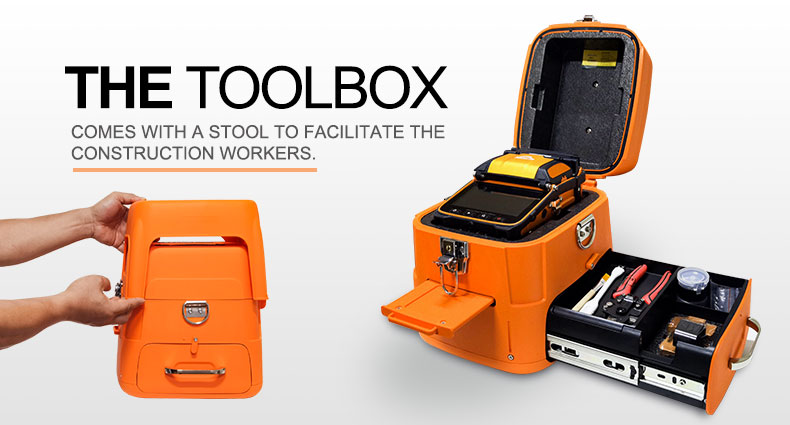

- Carrying Case
- User Manual
Key Features
- 6-Motor Core Alignment Technology for precise and low-loss splicing.
- 5-Second Splice & 15-Second Heat Time for maximum efficiency.
- Built-in VFL (15 mW) and Optical Power Meter for on-site testing.
- Supports all major fiber types – SM, MM, DS, NZDS, and BIF.
- 5-Inch Color LCD Screen with 300× magnification.
- Powerful 7800 mAh Battery – approx. 240–260 splice/heat cycles.
- Intelligent Calibration for temperature, altitude, and environment.
- Compact & Rugged Design, ideal for field use.
- USB Port for data export and firmware updates.
- Multi-language User Interface (English, Chinese, French, etc.)
Technical Specifications
| Specification | Details |
|---|---|
| Alignment Method | 6-Motor Core Alignment |
| Splicing Time | Typical 5 seconds |
| Heating Time | Typical 15 seconds |
| Display | 5-inch high-resolution color LCD |
| Magnification | Up to 300× |
| Battery Capacity | 7800 mAh Lithium Battery |
| Splice/Heat Cycles | Approx. 240–260 per charge |
| VFL Output Power | 15 mW (CW/2 Hz) |
| Optical Power Meter Range | 850 nm–1650 nm |
| Operating Temperature | −10 °C – +50 °C |
| Fiber Types Supported | SM, MM, DS, NZDS, BIF |
| Cladding Diameter | 80–150 μm |
| Coating Diameter | 100–1000 μm |
| Data Storage | Up to 10,000 splice results |
| Interface | USB 2.0 |
| Weight | Approx. 2.3 kg (with battery) |
- 🔗 Signal Fire Official Website – AI-9 Product Page
- 🔗 Fiber Optic Association (FOA) – Fusion Splicing Guide
- 🔗 TP-Link Network Solutions Kenya – Wavetech
- 🔗 Buy Fiber Splicing Tools in Kenya – Wavetech Online Store
- 🔗 Signal Fire AI-9 Datasheet (PDF)
