MikroTik RBSXTsq5nD-US – SXTsq Lite5 CPE

MikroTik RBSXTsq5nD-US – SXTsq Lite5 CPE

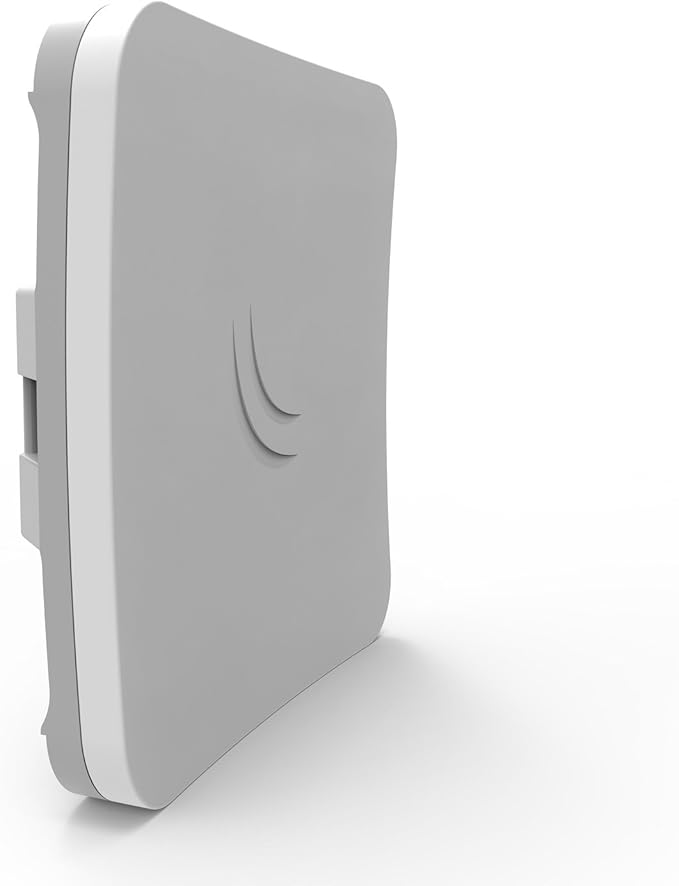

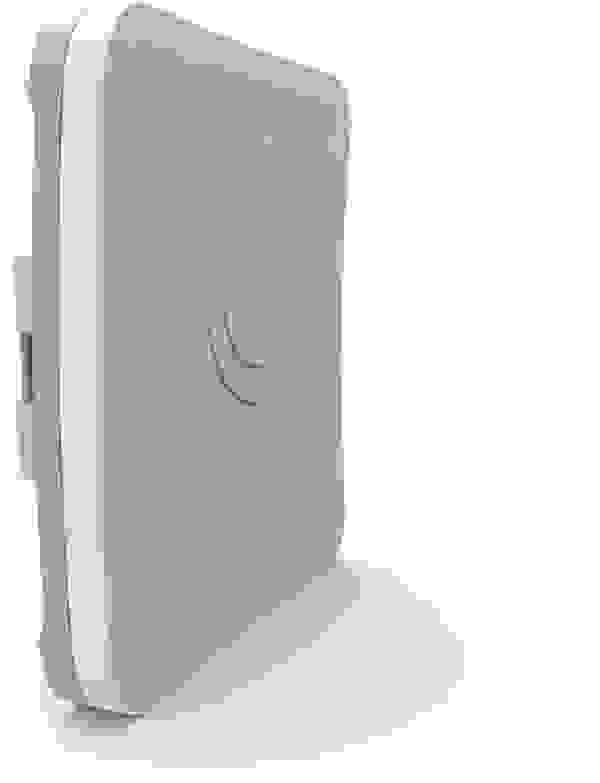

The MikroTik RBSXTsq5nD-US (SXTsq Lite5 US version) is a compact, lightweight, and outdoor wireless CPE designed for reliable point-to-point and point-to-multipoint connections. It operates on the 5GHz frequency and offers up to 500+ Mbps throughput with its integrated antenna.

This device is ideal for ISPs, WISPs, and enterprises needing long-range wireless links or cost-effective customer premises equipment.

Key Features

• Frequency: 5GHz (US locked frequency range)

• Data Rate: Up to 500+ Mbps (wireless)

• Antenna Gain: 16 dBi integrated panel antenna

• Interface: 1x 10/100Mbps Ethernet port

• Design: Compact, weatherproof, and lightweight outdoor enclosure

• Operating System: RouterOS Level 3 (CPE optimized)

• Mounting: Easy pole mount kit included

Technical Specifications

• Model: MikroTik RBSXTsq5nD-US (SXTsq Lite5 US)

• CPU: AR9344, 600MHz

• RAM: 64MB

• Storage: 16MB Flash

• Ethernet Ports: 1 x 10/100 Mbps

• Antenna Gain: 16 dBi directional

• Wireless Protocols: 802.11a/n (5GHz)

• Power Method: Passive PoE 10–30V DC

• Max Power Consumption: 6W

• Dimensions: 129 x 129 x 34 mm

• Operating Temperature: -30°C to +80°C

Applications

• Point-to-Point Links – Long-distance wireless connections

• WISP CPE – Affordable customer premises equipment

• Point-to-Multipoint Base Stations – Compatible with MikroTik APs

• Rural Internet Connectivity – Cost-effective broadband expansion

• Enterprise Wireless Bridges – Connect remote buildings or offices

Why Choose MikroTik RBSXTsq5nD-US?

• Compact and easy to install

• High-gain antenna for long-distance coverage

• Cost-effective CPE solution

• Durable outdoor-ready enclosure

• Runs on MikroTik RouterOS with advanced networking features
